Professional Manufacturer of Various Kinds of Blowers

|
| Place of Origin: | CHINA |
| Brand Name: | BK |
| Certification: | ISO9001/ISO14001/CE |
| Model Number: | BKW5006 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 2500-3700 USD |
| Packaging Details: | wooden case |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3 sets per month |
| Name: | Three Lobe Roots Blower | Potr Dia: | 100(4") |
|---|---|---|---|
| Speed: | 850-2000rpm | Type Of Cooling: | Water Cooling |
| Noise: | Low Noise | Voltage: | 380V/400V/415V/440V/Customed |
| Frequency: | 50HZ/60HZ | Application: | Waste Water Treatment |
| Installation Type:: | Horizontal Or Vertical | ||
| Highlight: | 3 Lobe Roots Blower,pneumatic conveying blower |
||

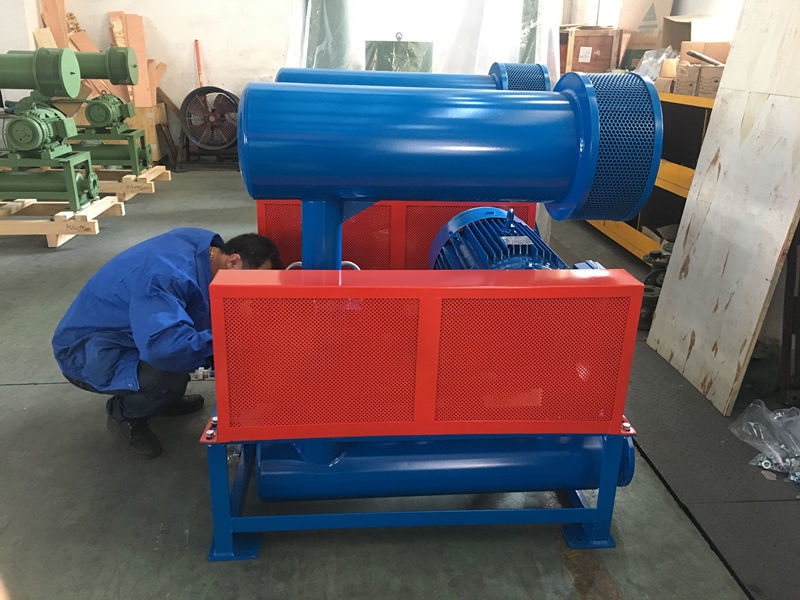

1 Brief introduction
BKW series roots blower inherits most components from BK series, it adopts water cooling in bearing cover,
which can reduce the temperature of bearing when working and prolong the longevity, also it has a larger
pressure capability.
2 Blower working principle
Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed.
Every rotation, there is two lobes to finish three times absorbing and discharging air. Compared with two lobes
blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.
Two parallel shafts have three lobes each, all the lobes keep small clearance with each other and housing
inside. Every lobes rotation, a certain air will be absorbed at inlet and transferred from the housing inside
surface to blower’s discharge port.
Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high
speed without any lubrication inside. It has the following characteristics: Simply configuration; running
smoothly; good performance stabilization. It has been widely applied in various industries.
3 Main engine parts drawing
4 Outline dimensional drawing
| Outline Dimension Sheet | ||||||||||||||||||
| Type | Port Dia | Motor Power | A | B | C | D | E | F | G | H | K | M | N | O | P | Q | n-M16xh | Weight(kg) |
| BKW5006 | 100(4") | 5.5~7.5 | 1220 | 980 | 90 | 228 | 592 | 199 | 234 | 1216 | 170 | 369 | 433 | 150 | 230 | 18 | 4-M16X300 | 214 |
| 11~15 | 489 | 553 | ||||||||||||||||
| 18.5~22 | 534 | 598 | ||||||||||||||||
| 30 | 560 | 624 | ||||||||||||||||
5 Performance parameter
| Port Dia | Speed | Inlet airflow(m3/min) and shaft power(KW) at different conditions | |||||||||||
| 0.6kgf/cm2 | 0.7kgf/cm2 | 0.8kgf/cm2 | 0.9kgf/cm2 | 1.0kgf/cm2 | Cooling water | ||||||||
| 6000mmH2O | 7000mmH2O | 8000mmH2O | 9000mmH2O | 10000mmH2O | |||||||||
| 0.06Mpa | 0.07Mpa | 0.08Mpa | 0.09Mpa | 0.1Mpa | |||||||||
| rpm | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | m3/min | KW | L/min | ||
| BKW5006 |
100(4") |
850 | 3.28 | 6.44 | 3.08 | 7.27 | 6 | ||||||
| 1000 | 4.29 | 7.58 | 4.09 | 8.55 | 3.91 | 9.69 | 3.73 | 10.83 | |||||
| 1150 | 5.31 | 8.72 | 5.1 | 9.83 | 4.93 | 11.15 | 4.74 | 12.46 | |||||
| 1250 | 5.98 | 9.47 | 5.78 | 10.69 | 5.6 | 12.12 | 5.42 | 13.54 | |||||
| 1350 | 6.66 | 10.23 | 6.45 | 11.55 | 6.28 | 13.09 | 6.1 | 14.63 | 5.94 | 16.17 | |||
| 1500 | 7.67 | 11.37 | 7.47 | 12.83 | 7.29 | 14.54 | 7.11 | 16.25 | 6.95 | 17.96 | |||
| 1600 | 8.35 | 12.13 | 8.14 | 13.86 | 7.97 | 15.51 | 7.79 | 17.33 | 7.63 | 19.16 | |||
| 1750 | 9.36 | 13.26 | 9.16 | 14.97 | 8.98 | 16.96 | 8.8 | 18.96 | 8.64 | 20.96 | |||
| 1850 | 10.04 | 14.02 | 9.83 | 15.82 | 9.66 | 17.93 | 9.48 | 20.04 | 9.32 | 22.15 | |||
| 2000 | 11.05 | 15.16 | 10.85 | 17.1 | 10.67 | 19.39 | 10.49 | 21.67 | 10.33 |
23.95 |
|||
6 About the accessory
(1) Standard accessory include: inlet and outlet silencer, pressure gauge, base-frame, blower's pulley,
motor's pullry, belt, belt guard, relief valve, check valve.
(2) The weight above are for standard accessories only, motor exclude.
(3) Dimension for blower, which is equipped with high voltage motor, will be supplied specially.
FAQ
1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.
2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.
3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.
4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.
6. What are your terms of payment?
1. TT 30% AS THE ADVANCE PAYMENT AND TT 70% AFTER INSPECTION BEFORE SHIPPING.
2.100% IRREVOCABLE L/C AT STGHT.
